Floorplan - 2017 Coachmen RV Freedom Express 231RBDS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 66
+66- Outlaw Price: $13,995
- Sucker's Price: $16,580
- We Saved You: $2,585
Payments From:
$158 /mo.
-
Sleeps 4
-
1 Slides
-
Outdoor KitchenU Shaped Dinette
-
27ft Long
-
5,076 lbs

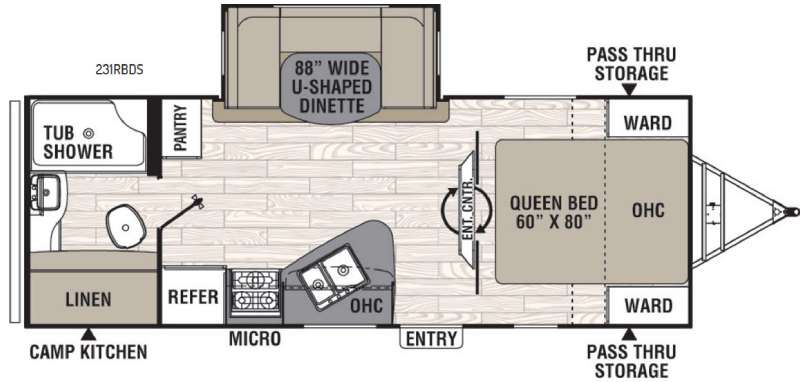

231RBDS Floorplan
231RBDS Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 1 |
| Length | 26 ft 10 in | Ext Width | 8 ft |
| Ext Height | 10 ft 9 in | Hitch Weight | 585 lbs |
| GVWR | 7500 lbs | Dry Weight | 5076 lbs |
| Cargo Capacity | 2424 lbs | Fresh Water Capacity | 49 gals |
| Grey Water Capacity | 33 gals | Black Water Capacity | 33 gals |
| Tire Size | ST205/75R14C | VIN | 5ZT2FEMB2HA025924 |
Description
Description
This Freedom Express travel trailer by Coachmen RV features a rear bath layout, a single slide for added interior space, and an outdoor camp kitchen.
Step inside model 231RBDS and notice the entertainment center straight ahead that swivels around providing multiple area viewing. There are sliding doors on either side that lead into the front bedroom where you will find a comfortable queen size bed with wardrobes, and an overhead cabinet for your things.
To the left of the entry door find a kitchen area with all the necessary equipment to easily create meals and snacks for your family. There is a double sink for cleaning up, a three burner range and overhead microwave for cooking, and a refrigerator for all of your perishables.
Opposite the door side enjoy dining at the u-shaped dinette slide out that also provides a bit more floor space when fully extended. A storage pantry is available just off the slide for your dry and canned goods storage.
The rear full bath offers a tub/shower, a toilet, and a vanity with sink. There is also a large linen cabinet for your towels and toiletries.
On the outside of this unit you will find a pass-through storage compartment for all of your outdoor camping gear. In the rear along the curb side there is a camp kitchen which makes preparing meals a cinch, and allows you to enjoy your time outside with family while you cook, plus so much more!
Step inside model 231RBDS and notice the entertainment center straight ahead that swivels around providing multiple area viewing. There are sliding doors on either side that lead into the front bedroom where you will find a comfortable queen size bed with wardrobes, and an overhead cabinet for your things.
To the left of the entry door find a kitchen area with all the necessary equipment to easily create meals and snacks for your family. There is a double sink for cleaning up, a three burner range and overhead microwave for cooking, and a refrigerator for all of your perishables.
Opposite the door side enjoy dining at the u-shaped dinette slide out that also provides a bit more floor space when fully extended. A storage pantry is available just off the slide for your dry and canned goods storage.
The rear full bath offers a tub/shower, a toilet, and a vanity with sink. There is also a large linen cabinet for your towels and toiletries.
On the outside of this unit you will find a pass-through storage compartment for all of your outdoor camping gear. In the rear along the curb side there is a camp kitchen which makes preparing meals a cinch, and allows you to enjoy your time outside with family while you cook, plus so much more!
Features
Features
Standard Features (2017)
Interior and Decor
- Independence Maple Hardwood Cabinet Doors and Drawer Faces
- Furniture Grade, Pocket Drilled and Screwed Stile and Rail Cabinet Front Construction
- Full Extension Roller Bearing Drawer Guides
- Designer Hard Valance with Soft sided Window Treatments
- Range Hood w/ 12V Exhaust and Light
- Sealed/Seamless Counter-tops
- Brushed Nickel Hardware
- High-Rise Kitchen Faucet
- 60/40 Stonecast Composite Kitchen Sink (N/A Special Editions)
- Silverware Drawer with Removable Tray (Select Models)
- Jackknife Sofa (N/A Liberty/Maple Leaf Editions)
- Dinette Storage Access Doors (No doors on Special Editions)
- Accent Wall in Master Bedroom
- Two Full-Length Mirrored Closets, Over-Bed Cabinets (Master)
- Two Nightstands with 110V Outlets (Most models)
- Storage Under Master Bed and Bunks (Select models)
- Wooden Privacy Slider Doors to Master Suite In Place of Curtain or Accordion Door (Most models)
- Vent in Master Bedroom
- Entertainment Tower with Rotating TV for Bedroom Viewing (Select models) (N/A Special Editions)
- Exhaust Vent with Fan in Bathroom
- Wood Medicine Cabinet with Bathroom Mirror and Cosmetics Shelf
- Hi Rise Foot Flush Toilet
- Interior Speakers with Selector Switch
- 55 Amp Power Converter
- GFI Receptacles in Bathroom and Kitchen
- LP Leak Alarm
- Fire Extinguisher
- Smoke and Carbon Dioxide Detector
- Multiple Egress Windows with Screen and Prop Rod
- Cable Support Tent Ends - 1000# Capacity (Expandables Only)
Exterior
- Dual 20# LP bottles
- LP Bottle Cover w/Valve Access
- 60° A-frame
- Dual Battery Rack
- Insulated, Painted Radius Entry Door with Screen Door
- Amber Patio Light
- Nitrogen Filled Radial Tires
- Water Heater Bypass
- Heavy Duty Welded Safety Chains
- Four-Wheel Electric Brakes
- Breakaway Safety Cable
- Exterior GFI Outlet Near Awning
- High-Capacity Roto-Cast Holding and Fresh Water Tanks
- HappiJac Double Hat Rail, Rack and Pinion 12V Slide System (18" slides)
- LCI Rack and Pinion 12V Slide System with Full Width Welded Ram (38" slides)
- Schwintek Slide System (Some models) (N/A Special Editions)
Construction
- Alumicage Welded Aluminum Structure, Vacuum Bonded Floor and Sidewalls
- Azdel Composite (IPO luan behind fiberglass)
- Smooth Fiberglass Exterior Skin
- Aluminum Framed Openings
- Powder E-Coated Steps and Axles
- Floor Plan Specific Cambered Frame Design
- Full Walk-on, Crowned, Aluminum Reinforced Roof with EPDM Membrane over 3/8” Roof Decking
- Double Wiper Seals on All Slide outs
Standard Extras
- Green Certification
- Seal Tech and Rain Bay Testing on Every Unit
- One-Year Free Membership to Coachnet Roadside Assistance
- One-year Free Membership to Coachmen Owner's Association (C.O.A.)
Options
- 15,000 BTU A/C
- 50 Amp Service w/Second A/C Prep
- Push-Button Stabilizer Jacks (25' and above)
- Power Tongue Jack
- Coleman Slide out High Output Grill (Select models)
- Hide-A-Bed (Deep slides only)
- RV Eye Wi-Fi Cameras
- Frameless Windows
- Ladder (N/A 271 BL and 301 BLDS)
- 8 Cu. Ft. Refrigerator
- Thermal Pack
- Free Standing Dinette with 4 Chairs
- Canadian Compliance
Freedom Value Package (REQUIRED)
- ¾ Gel Coated Fiberglass Front Cap with
- LED Lights
- Aluminum Wheels
- Spare Tire Kit
- Detachable Power Cord
- Power Awning
- Magnetic Catch Compartment Doors
- Tinted Safety Glass Windows
- Front Diamond Plate
- TV & Radio Antenna with Booster
- E-Z Lube® Axles
- Spread Axle Design (N/A on Models Under 25')
- Heated Enclosed Underbelly (N/A on Models Under 25')
- Solar Port
- Folding Entry Assist Handle
- Exterior Shower Station
- Winterize Ready Kit
- Black Tank Flush
- 2 Exterior Speakers, 4 Interior Speakers
- Ducted Furnace (N/A on Models Under 25')
- Ducted Ceiling Air Conditioning (25’ and above)
- AM/FM/CD/DVD/Bluetooth
- 24”, 32” or 39” LED TV
- Satellite Ready
- LED Interior Lighting Throughout
- Night Shades Throughout
- Congoleum Designer Carefree Flooring
- Mortise and Tenon Cabinet Doors
- Stonecast Sink
- Sink Covers
- Galley LED Strip Light
- Microwave
- Oven with 3 Burner Cooktop
- Butcher Block Stove Cover
- 6 Cu. Ft. Two Door Refrigerator
- Silverware Drawer (select models)
- 60” x 80” Queen Bed
- LED Swivel Crystal Reading/ Night Light – Bedroom
- Electronic Charging Station
- Skylight in Bath
- RVIA
- LED 4” Recessed Lights in Living Area
- White LED Awning Light
- 12” LED Step Light
- LED Light Strip in Pass-through Storage (N/A 276 RKDS, 297 RLDS)
- 24” x 48” Resin Outdoor Table
Special Edition Package (SE Models)
- Radial Tires with Silver Steel Wheels
- Spare Tire
- Black Fenders with Black Skirt Metal
- Detachable Power Cord
- Power Awning
- Solar Port
- Tinted Safety Glass Windows
- Front Diamond Plate
- TV and Radio Antenna with Booster
- E-Z Lube® Axles
- Heated/Enclosed Underbelly
- 33/33 Gal Grey, Black Holding Tank
- 49 Gal Fresh Water Tank
- Two Exterior Speakers
- AM/FM/Bluetooth Stereo
- Two Interior Speakers
- Ducted AC
- Ducted Furnace
- 6 Gal DSI Gas/Electric Water Heater
- LED Interior Lighting
- Mortise and Tenon Cabinet Door
- Congoleum Diamond Flooring
- Night Shades
- Microwave
- Oven with 3-Burner Cooktop
- 6 Cu. Ft. Two-door Refrigerator
- Silverware Drawer (select models)
- Double Basin Sink
- Bath Skylight
- 60” x 80” Queen Mattress with
- corative Bedspread
- RVIA
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
